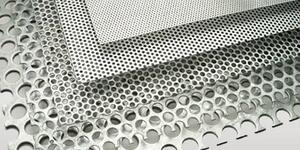

Perforated mesh

We produce perforated metal mesh (metal sheets) mainly from stainless steel. It is the most durable of all types of steel. It can withstand static and dynamic physical loads, is not afraid of corrosion, and even in open spaces lasts for more than 40 years without changing its performance qualities. It is possible to manufacture products from other metals upon customer request.

DESCRIPTION

The BCmesh company offers a large selection of standard sizes and types of perforation of sheet metal. The offered products are distinguished by high strength, wear resistance, practicality and durability in operation.

Perforated metal mesh (sheet) is divided into different punching shapes of different materials to meet different needs:
1. according to material:
The manufactured perforated mesh can be:

- stainless;

- galvanized;

- cold or hot rolled;

- aluminum, copper, brass, etc.

2. by type of perforation, which is determined by the shape of the hole, the relative position of the holes and the center-to-center distance.



Rv - round perforation with offset rows of holes,

w - hole diameter,

р - distance between hole centers.



Ø 1,0mm
step 2,0mm

Ø 2,0mm
step 2,5mm

Ø 3,0mm
step 5,0mm

Ø 5,0mm
step 8,0mm

Ø 6,0mm
step 9,0mm

Ø 8,0mm
step 11,0mm

Ø 10,0mm
step 13,0mm

Ø 20,0mm
step 27,0mm



Rg – round perforation with straight rows of holes,

w – hole diameter,

р – distance between hole centers.



Ø 2,0 mm
step 9,0 mm

Ø 4,0 mm
step 12,0 mm

Ø 5,5 mm
step 15,5 mm

Ø 8,0 mm
step 19,0 mm



Qg – square perforation with straight rows of holes,

w – hole size,

р – distance between hole centers.



hole 5x5mm
step 8mm

hole 6x6mm
step 9mm

hole 8x8mm
step 11mm

hole 10x10mm
step 14mm

Lv - oval perforation with offset rows of holes



hole 1 x 20mm
step 3,2 x 2,4mm

hole 5 x 25mm
step 8 x 30mm

Decorative perforation

Type 1
Cross dot

Type 2
cross 19 х 19

Type 3
cross 12 х 12

Type 4
in-depth 28 x 28

It is worth mentioning separately about sheets with decorative perforations; such sheets can be considered a real work of art, since the holes can have the shape of a flower, a hexagon (honeycomb) or any other shape. Designers and architects use such sheets in their work, because they allow you to radically change the appearance of a room or interior.

USAGE

Perforated mesh is used in automobiles, railways, factories, buildings and various decorative and interior solutions.

It is widely used in chemical machinery, pharmaceutical machinery, food and beverage manufacturing, cigarette machinery, cutting apparatus, dry cleaning, audio equipment, refrigeration equipment (central air conditioning), speaker manufacturing, handicraft products, paper, hydraulic equipment, filtration equipment and so on.
